Portable CB radio station PNI Escort HP 62DE German version
€83.28
Availability: In stock
SKU
PNI-HP62DE

Hp62

Multifunctional illuminated screen

The illuminated screen displays the current working mode of the station: the active functions (EMG, LOCK, SC, DW), the frequency band and the selected channel number, as well as the received and transmitted signal strength.

Portable, practical, always at hand

Similar to a walkie-talkie, the PNI Escort HP 62DE CB station is extremely accessible and convenient to use thanks to its small dimensions, only 73 x 35 x 92 mm - without the power adapter. Thus, you can place the station in the armrest or in tight spaces on the dashboard of any car.

The adapter cable is 30 cm long.

00001

Portable CB PNI Escort HP 62DE

Multiple functions

Although small in size, the PNI Escort HP 6DE is equipped with most of the functions necessary for a CB station, thus satisfying the demands of any user.

Functions such as RF Gain (9 levels), Scan, Automatic Squelch (5 levels), Dual Watch or Last channel recall make the station easy to adapt to different communication needs.

Connectivity: BNC connector, 2-pin plug and PL259 plug

The PNI Escort HP 62DE CB radio station has a dual use: in the car as a mobile station together with a body-mounted antenna and outside as a portable station by installing a BNC antenna and batteries.

Optional accessories:

  1. PNI adapter for 12V power supply and external antenna (code PNI-AE-HP62)

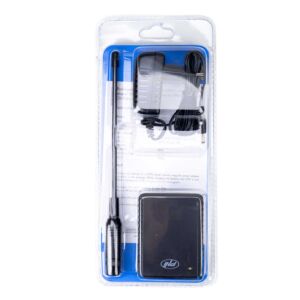

  2. PNI PB-HP62 Li-Ion 1500mAh battery kit plus 230V power supply 8.4V output and BNC antenna (code PNI-AK-HP62)

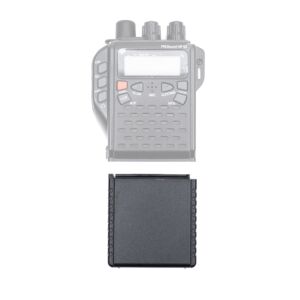

  3. Support for 6 AA batteries (R6) (code PNI-SB-HP62)

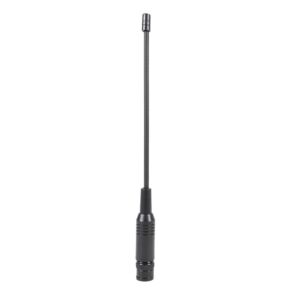

  4. BNC antenna 20 cm (code PNI-ANTHP62)

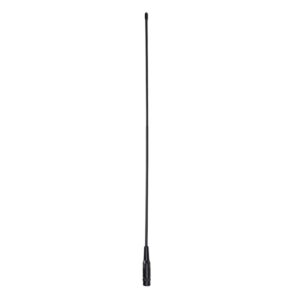

  5. BNC antenna PNI Flex 27 48 cm (code PNI-FLEX27)

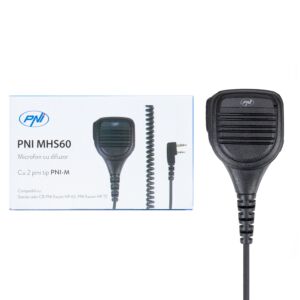

The microphone and speaker connections allow you to connect a 2-pin PNI-M headset with which you can communicate hands-free.

CB radio station PNI Escort HP 62DE

Video presentation

CB transceiver PNI HP Escort 62

Write Your Own Review
You're reviewing:Portable CB radio station PNI Escort HP 62DE German version, multi standard, 4W, 12V, AM-FM, ASQ adjustable on 5 levels, RF Gain on 9 levels, Dual Watch, Scan, Lock
Your Rating
Product identification
Producer PNI
Product code PNI-HP62DE
Product type CB radio station
General characteristics
Model Portable
Emission band type AM/FM
channels 40
Frequency 26.965 - 27.405 MHz
Speaker audio power 0.5W
Emission power 4 W
feeding 12 V
Absorbed current 900mA
Dimensions (W x H x D / Weight) 73 x 35 x 92 mm (without power adapter) / 332 g (including adapter)
Special features
Dual Watch Yes
Channel scan Yes
RF Gain Yes, 9 levels
ASQ Yes, 5 levels
Lock the keyboard Yes
LCR - the last selected channel Yes
Emergency channels Yes
Multicolor screen Orange
VOX
Manual squelch
and meter Yes
Accessory connection 2-pin PNI-M plug
Operating temperature -26°C ~ +80°C
Screen lighting Yes
Channel monitoring
Display Yes
The package contains
Radio station Yes
Support and screws for holding the radio station
Cigarette lighter plug Yes
User manual Yes
Antenna adapter and 12 V power supply Yes
Belt support Yes



PNI-HP62DE
Lang Type Name Link
EU10 Declaration of Conformity Declaration of conformity EU9 Link
EU10 User manual User manual EU10 Link
