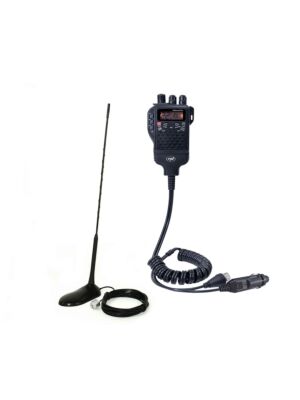

Kit CB CBI PNI Escort 62 and PNI Extra 48 with Magnet included, ASQ, RF gain

Portable CB station with external antenna adapter and lighter socket + CB antenna with cable and magnet included
Availability: In stock

Video presentation

Kit CB transceiver PNI HP Escort 62 and PNI Extra 48 antenna with magnetic base, ASQ and RF gain


Multifunctional illuminated screen

The illuminated screen displays the current operating mode of the station: the active functions (EMG, LOCK, SC, DW), the frequency band and the selected channel number, as well as the power of the received signal and the transmitted signal.

Portable, small size

Similar to a walkie-talkie, the CB PNI Escort HP 62 station is extremely accessible and comfortable to use due to its small size, only 73 x 35 x 92 mm - without the power adapter. Thus, you can place the station in the armrest or in the confined spaces on board any car.


CB Portable PNI Escort HP 62

Multiple functions

Although small in size, the PNI Escort HP 62 is equipped with most of the functions required for a CB station, thus satisfying the requirements of any user. Functions such as RF Gain (9 levels), SQ (28 levels), Scan, Automatic Squelch (5 levels), Dual Watch or Last channel recall make the station easy to adapt to different communication needs.

Connectivity: BNC connector, 2-pin plug and PL259 plug

The CB PNI Escort HP 62 radio station has a dual use: in the car as a mobile station together with the antenna mounted on the body and outside as a portable station, installing a BNC antenna and batteries (optional accessories). The connections for microphone and speaker allow the connection of a 2-pin headset with which we can communicate in handsfree mode.

CB PNI Escort HP 62 radio station

CB PNI Extra 45 antenna with magnet included SWR 1.0

CB antenna, discreet and efficient

The PNI Extra 48 antenna is among the smallest CB antennas (it has a height of only 45 cm) and can be mounted both on cars and on vans or minibuses. Its small size makes it almost unnecessary, easily confused with the radio antenna. The average reception distance is 10 km.

Anti-noise design

The CB PNI Extra 48 antenna has a special anti-noise design that allows air to slide around the spike, eliminating wind noise that could disrupt communication.

CB PNI Extra 45 antenna with magnet included SWR 1.0

Write Your Own Review
You're reviewing:Kit CB CBI PNI Escort 62 and PNI Extra 48 with Magnet included, ASQ, RF gain
Your Rating
Product identification
Product code PNI-HP62-48
General characteristics of the radio station
Frequency 26,965-27,405 MHz
Transmission band type AM-FM
feeding 12 V
Sensitivity (10dB) 0.5uV (AM) 0.25uV (FM)
Audio speaker power 0.5W
Current absorbed 900 mA
Model portable
Dimensions (W x H x H / Weight) 73 x 35 x 92 mm (without power adapter) / 332 g (adapter included)
Special features Radio station
ASQ - Automatic squelch Yes, 5 levels
RF Gain Yes, 9 levels
Mic Gain Not specified
9/19 emergency channel button Yes
Roger Beep Not specified
CSF - the last selected channel Yes
Color screen Yes
SQ - Squelch Yes, 28 levels
General characteristics of the radio antenna
Working frequency 26 - 28 Mhz
Maximum power applied 150 W
Minimum SWR in the center of the band less than 1.2: 1
Length 45 cm (magnetic base included) Spike length: 44 cm
impedance 50 Ohm
Material Fiber glass
Connector tip PL259
Cable length (m) 4 m
Weight 193 g
Magnetic base 103 x 66 x 40 mm
The package contains
Radio station antenna Yes
Magnetic base Yes
Radio station microphone Yes
Microphone holder Not
Station mounting bracket Not
Wired remote control Not
External handsfree microphone Not
Charger / charger for 8 batteries Not
BNC antenna 19 cm Not
Radio station cover Not
Support for 6 batteries Not

Lang Type Name Link
EU Declaration of Conformity Declaration of conformity DE, EN, ES, FR, HU, IT, PL, RO Link
EU10 User manual User manual EU10 Link
