Radio station CB PNI Escort HP 62

Kit CB CBI PNI Escort 62 and PNI Extra 48 with Magnet included, ASQ, RF gain

Wireless CB PNI Escort package HP 6500 ASQ + CB PNI ML70 antenna

Wireless CB PNI Escort package HP 6500 ASQ + CB PNI ML70 antenna

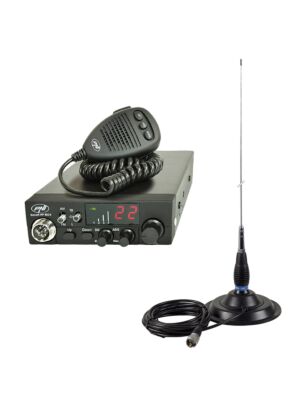

CBR CBI Station CBI ESCORT CB 8024 ASQ + CB PNI ML160 Antenna with T941 Support

CB PNI ESCORT CB 8024 ASQ radio station with adjustable ASQ and 12V / 24V supply makes an excellent team with CB PNI ML60 Antenna and Fixed Mounting Stand PNI T941 that has a cable length of 5 meters
€93.99
Availability: In stock
SKU
PNI-PACK55

image description

ASQ Adjustable and power supply 12/24 V

The CB PNI Escort HP 8024 radio station can be mounted both on cars with 12V power supply, as well as on trucks or TIRs with 24V power supply.

An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of CB car radio stations. If up until now we were used to activating / deactivating the ASQ, now PNI brings its adjusting function, which allows to eliminate up to 100% of interference, background noise and jamming in the CB band.

Key lock switch

CB PNI Escort HP 8024 radio station has a switch on the front panel that allows the selection of the emergency channel (19), the normal operating mode (CH) and the activation of the key lock function (L), a useful function in situations when touch avoidance is desired. accidental station keys.

image description

image description

Small size

You can use the product in any car, as it is one of the smallest CB radio stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, board, between chairs, without disturbing or disturbing.

performances

The performance of the product is closely related to the technical characteristics that the antenna has under ideal conditions of installation and use: SWR <1.1, Maximum applied power 600 W, impedance 50 Ohms, Stainless steel etc.

image description

image description

Communication distance

Communication distance is another decisive factor in the acquisition and use of a CB antenna. Thus the maximum communication distance of 15 km or more is reached in ideal working conditions: Calibrated antenna, open field without obstacles, the station with maximum legal power allowed by 4W and with a standard reception. Any obstacle such as hills, mountains, buildings, walls can reduce this distance.

Support for the antenna

The antenna mounting bracket comes with a cable length of 5m, thus allowing you to mount the antenna on the trunk of the vehicle and yet get to make the connection with the CB radio station.

Due to the sturdy clamping with the aid of the screws there is no danger that the support together with the antenna will loosen and endanger you.

image description

Write Your Own Review
You're reviewing:CBR CBI Station CBI ESCORT CB 8024 ASQ + CB PNI ML160 Antenna with T941 Support
Your Rating
Product identification
Product code PNI-PACK55
General features of the radio station
Model Furniture
Broadband type AM-FM
Frequency 26.965-27.405 MHz
channels 40 AM / FM
Microphone type 6 pines
Emission power 4 W +
Modulation FM: 3KHz ± 0.2KHz, AM: 85-90%
Mounting 1 DIN Yes
feeding 12 -24 V
Dimensions / Weight 115 x 36 x 152 mm / 0.8 kg
Special features of the radio station
ASQ (automatic squelch) Yes
Adjustable ASQ Yes
SQ - Squelch Yes
Lock the keyboard Yes
Emergency channel button 9/19 Yes
Features radio antenna
Working frequency 25 - 30 MHz
Number of channels 90
Maximum applied power 600 W
Minimum SWR in the center of the band 1.0
Antenna length 145cm
Working distance 15 km
impedance 50 Ohms
Material Stainless steel
Tip connector PL259
Bore diameter 16 mm
The package contains
CB radio station Yes
CB radio antenna Yes
Antenna support with cable Yes

PNI-HP8024
