Amateur radio station CRT SS 7900 V TURBO

Amateur radio station CRT SS 7900 V TURBO CB, SSB, AM, FM, LSB, USB, SSB 28-29.7Mhz, ASQ, RF Gain, Roger Beep, 12V, CTCSS, DCS, programmable

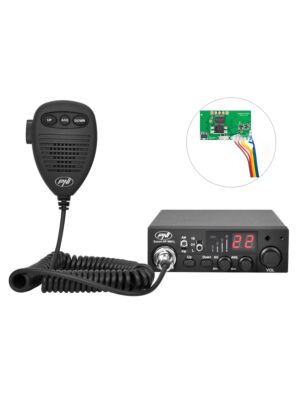

PNI Escort HP 8000L CB radio station kit and PNI ECH01 echo and roger beep module

PNI Escort HP 8000L CB radio station kit and PNI ECH01 echo and roger beep module
€98.64
Availability: In stock
SKU
PNI-HP8000EC

PNI-HP8000L - PNI Escort HP 8000L CB radio station with adjustable ASQ, 12V, 4W, Lock, cigarette lighter plug included



so adjustable

ASQ Adjustable

An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band.

ASQ button on microphone

For increased comfort behind the wheel, PNI has positioned the automatic squelch (ASQ) activation/deactivation button on the microphone. In addition to this button, we also find up/down buttons on the microphone for changing channels, so you won't have to take your eyes off the road to operate these main functions.

asq on the microphone

REDUCED DIMENSIONS

Reduced dimensions

You can use the product in any car, because it is one of the smallest CB stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being uncomfortable or disturbing.

Key lock switch

The PNI Escort HP 8000L CB radio station has a switch on the front panel that allows the selection of the emergency channel (19), the normal operating mode (CH) and the activation of the key lock function (L) , a useful function in situations where you want to avoid touching accidental pressing of the station keys.

CB radio station PNI Escort HP 8001L ASQ includes headphones with HS81 microphone

PNI-ECH-R-01 - PNI ECH01 echo and roger beep module editable via micro USB cable MP3 format length 1.5 seconds



PNI ECH01 editable echo and roger beep module

Echo mode and roger beep

The PNI ECH01 echo and roger beep module has been designed to work with any radio station in the CB and VHF/UHF band as an add-on module.

The main functions of the module are:
Echo : Generating the echo effect of the signal captured by the radio station's microphone and inserting it into the modulation stage;
Roger beep : Generating a personalized signal (via MP3 audio file) upon completion of the broadcast and maintaining it.

Custom Roger Beep effect

Connect the module to a computer and copy the customized audio file (MP3 or WAV, maximum duration 1.5 seconds) according to the instructions in the manual.

As a result, at the end of each broadcast, you will also transmit the customized audio signal that will be received by other CB users as an end-of-broadcast warning.

Make yourself stand out in traffic with PNI's echo and roger beep mode.

PNI ECH01 editable echo and roger beep module

PNI ECH01 editable echo and roger beep module

Compatibility

The PNI ECH01 echo and roger beep module is compatible with any CB or VHF/UHF radio station regardless of brand.

Add these two new functions to your station and you will make a difference: your received voice will be distinguished from others by the echo effect, and the end of your broadcast will be marked by an original audio signal.

Connect to computer and copy custom sound

To write another sound (beep of maximum 1.5 seconds) edited in MP3 or WAV format, you must connect the PNI ECH01 module via micro USB cable to the laptop (computer) and activate the power switch.

In a few seconds the laptop will find the xx MB memory, then by normal copying transfer the file to the memory of the PNI ECH01 module.

Do not forget to switch the PNI ECH01 module switch to the initial working position.

PNI ECH01 editable echo and roger beep module

Write Your Own Review
You're reviewing:PNI Escort HP 8000L CB radio station kit and PNI ECH01 echo and roger beep module
Your Rating
Product identification
Producer PNI
Product code PNI-HP8000EC
Product type CB radio station
General characteristics
Model Portable
Emission band type AM/FM
channels 40
Frequency 26.965 - 27.405 MHz
Microphone type (pins) 6 pins
Speaker audio power 2W
Emission power 4 W
Modulation FM: 3KHz ± 0.2KHz, AM: 85-90%
feeding 12 V
Absorbed current 2 A
Dimensions (W x H x D / Weight) 115 x 36 x 152 mm / 0.8 kg
Special features
Channel scan Yes
ASQ Yes
Lock the keyboard Yes
ASQ adjustable Yes
Emergency channels Yes
Operating temperature -26°C ~ +80°C
The package contains
Radio station Yes
Microphone Yes
Support and screws for holding the radio station Yes
Microphone support and screws Yes
Power cord Yes
Cigarette lighter plug Yes
User manual Yes
Echo mode and roger beep Yes



PNI-HP8000L
Lang Type Name Link
EU Declaration of Conformity Declaratie de conformitate EN, BG, DE, ES, FR, HU, IT, PL, RO Link
EU10 User manual User manual EU10 Link
RO Declaration of Conformity DC&CG Link

PNI-HP8000EC
Lang Type Name Link
EU10 Declaration of Conformity Declaration of conformity EU9 Link

PNI-ECH-R-01
Lang Type Name Link
EU2 Declaration of Conformity Declaration of conformity EU2 Link
RO Software Fisiere audio WAV no.1 Link
