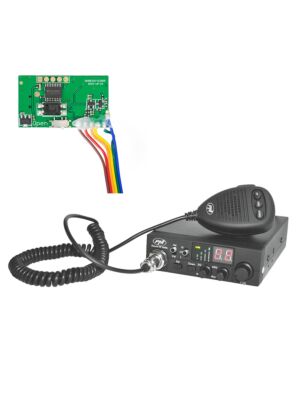

PNI Escort HP 8001L CB radio station kit and PNI ECH01 echo and roger beep module

Key lock switch

The PNI Escort HP 8001L CB radio station has a switch on the front panel that allows the selection of the emergency channel (19), the normal operating mode (CH) and the activation of the key lock function (L) , a useful function in situations where you want to avoid touching accidental pressing of the station keys.

ASQ adjustable

An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band.

6 pin microphone

The HP 8001L ASQ radio has a standard 6-pin microphone jack on the front panel. The microphone included in the package has buttons for channel selection, PTT button and ASQ activation button.

40 channels

The PNI HP 8001L radio station corresponds to the latest European CB standards. The station has a switch for changing the type of modulation (AM or FM) which will allow you to select the operating mode.

Headphone jack with microphone

The PNI HP 8001L radio station has plugs on the front panel for connecting a pair of headphones with a microphone, included in the package.

Compatible with PNI Bluetooth accessories

The PNI Escort HP 8001L radio station is compatible with the PNI BT-Dongle 8001 Bluetooth adapter, the PNI BT-MIKE 8500 Bluetooth microphone and the PNI BT-MIKE 7500 Bluetooth headset.

Echo mode and roger beep

The PNI ECH01 echo and roger beep module has been designed to work with any radio station in the CB and VHF/UHF band as an add-on module.

The main functions of the module are:
• Echo : Generating the echo effect of the signal captured by the radio station's microphone and inserting it into the modulation stage;
• Roger beep : Generating a personalized signal (via MP3 audio file) upon completion of the broadcast and maintaining it.

Custom Roger Beep effect

Connect the module to a computer and copy the customized audio file (MP3 or WAV, maximum duration 1.5 seconds) according to the instructions in the manual.

As a result, at the end of each broadcast, you will also transmit the customized audio signal that will be received by other CB users as an end-of-broadcast warning.

Make yourself stand out in traffic with PNI's echo and roger beep mode.

Compatibility

The PNI ECH01 echo and roger beep module is compatible with any CB or VHF/UHF radio station regardless of brand.

Add these two new functions to your station and you will make a difference: your received voice will be distinguished from others by the echo effect, and the end of your broadcast will be marked by an original audio signal.

Connect to computer and copy custom sound

To write another sound (beep of maximum 1.5 seconds) edited in MP3 or WAV format, you must connect the PNI ECH01 module via micro USB cable to the laptop (computer) and activate the power switch.

In a few seconds the laptop will find the xx MB memory, then by normal copying transfer the file to the memory of the PNI ECH01 module.

Do not forget to switch the PNI ECH01 module switch to the initial working position.
