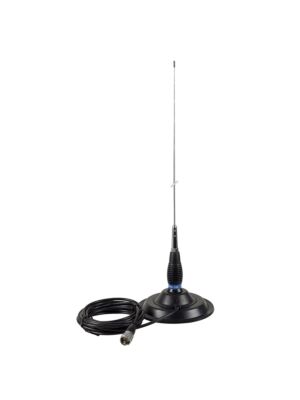

CB PNI ML100 antenna, length 100 cm, 26-30MHz, 250W, 125mm magnet included
High performance CB PNI ML100 antenna
The performance of the product is closely related to the technical characteristics that the antenna has under ideal conditions of installation and use: SWR <= 1.0, maximum power applied 250 W continuous, impedance 50 Ohms, stainless steel etc.
Communication distance is another decisive factor in the acquisition and use of a CB antenna. Thus, the communication distance of maximum 12 km is reached in ideal working conditions: calibrated antenna, open field without obstacles, the station with maximum legal power allowed by 4W and with a standard reception. Any obstacle such as hills, mountains, buildings, walls can reduce this distance.
Antenna length is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range. PNI antenna ML100 has a length of 110 cm (magnetic base included).
The magnetic base 120 / PL in the package is provided with a cable of 4 m, sufficient to place the antenna on the dome, has a diameter of 125 mm and a strong magnet that offers the antenna stability even at high speeds.
This kit is ready for mounting having in the package: antenna, magnetic base with cable and PL259 socket, imbued for calibration. All you have to do is mount the antenna on a magnetic basis, connect it to a CB radio station and calibrate it for maximum performance.
|Product color (spike)||Silver|
|Working frequency||26 - 28 Mhz|
|Number of channels||90|
|Maximum applied power||250W|
|Minimum SWR in the center of the band||1.0|
|Length||100 cm (110 cm with base included)|
|Hole diameter (mm)||16 mm|
|Cable length (m)||4m|
|dimensions||100 x 15 x 4 cm|
|I earn||4 dB|
|Working distance||12 km|
|Operating temperature||-26 ° C ~ + 60 ° C|
|The package contains|
|Radio station antenna||Yes|
|Magnetic base||125 mm|
