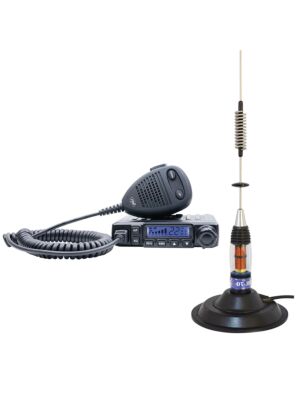

CB PNI Escort HP 55 ASQ Radio Station Package with CB PNI ML70 Antenna and 145 mm magnetic base included
PNI-HP55 - CB radio station PNI Escort HP 55 ASQ, multi-norm, RF Gain, ASQ, adjustable SQ, cigarette lighter plug included
| Multifunctional microphoneThe HP 55 PNI Escort CB Station is one of the smallest CB stations on the market. Due to its very small size, and especially the location of all the control keys on the microphone , PNI HP 55 becomes an extremely reliable communication tool. Place the station body anywhere in the car and keep only the large LCD screen microphone and control keys at hand to quickly set the station channel, tape, and functions. |
3 frequency tables and selectable normsThe HP 55 PNI Escort multi-norm station brings a novelty in the field of CB. Depending on the country you are traveling to, first select the frequency table and then the country-specific rule. Carefully consult the local legislation and set the station (maximum allowable emission power) accordingly. |
|
| FunctionsPNI Escort HP 55 has all the basic functions required by the CB user: background noise cancellation functions (9-level RF Gain , 28-level adjustable SQ , 5-level ASQ ), channel scan function, key lock and Dual Watch simultaneous two channels). |
Additional settings menuBy simply pressing the F key on the microphone, you can access the menu with additional settings, such as: key light, key sound and screen light color, essential tools for customizing the station according to your tastes. |
|
PNI-ML70 - CB antenna PNI ML70, length 70cm, 26-30MHz, 200W, magnet 145 mm included
| High performance CB PNI ML70 antennaThe performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.2, maximum applied power 200 W, impedance 50 Ohms, stainless steel, etc. |
Communication distanceCommunication distance is another decisive factor in the acquisition and use of a CB antenna. Thus, the communication distance of maximum 9 km is reached in ideal working conditions: calibrated antenna, open field without obstacles, the station with maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. |
|
| Antenna lengthAntenna length is a very important factor that can influence the communication distance. Thus, the longer the antenna, the longer the range. The PNI ML70 antenna has a length of 70 cm (magnetic base included). |
Magnetic baseThe magnetic base PNI 145 / PL in the package is provided with a 4 m cable, enough to place the antenna on the dome, has a diameter of 145 mm and a strong magnet that gives the antenna stability even at high speeds. |
|
| Full packageThis kit is ready for assembly with the package: antenna, magnetic base with cable and PL259 plug, enclosure for calibration. All you have to do is mount the antenna on a magnetic base, connect it to a CB radio station and calibrate it to use it at maximum performance. |
Video presentation |
|
CB PNI antenna ML70, length 70cm, 26 30MHz, 200W, magnet 145 mm included ENCB PNI Escort HP 55 ASQ radio station, multi norm UK |
| Product identification | |
| Product code | PNI-PACK92 |
| General characteristics of the radio station | |
| Model | Portable |
| Emission band type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 |
| Microphone type | RJ45 |
| Speaker audio power | 3 W |
| Audio signal distortion | less than 8% @ 1 KHz |
| Emission power | 4 W |
| Modulation | FM: 1.8KHz ± 0.2KHz, AM: ≥ 90% |
| feeding | 12 V |
| Consumption | 2 A |
| Special radio station features | |
| ASQ (automatic squelch) | Yes |
| Channel scan | Yes |
| Characteristics of the radio antenna | |
| Antenna length | 70 cm (magnetic base included) |
| Impedance | 50 Ohms |
| Material | Stainless steel |
| Connector type | PL259 |
| Magnetic base included | Yes |
| Magnetic base diameter | 100 x 18 x 5 cm |
| Cable length | 4 m |
| I earn | 4 dB |
| Polarization | vertically |
| The package contains | |
| CB radio station | Yes |
| CB radio antenna | Yes |
| Magnetic base | Yes |
| Plug PL259 | Yes |
| RG58 cable | Yes, 4 m |
| Station power cable | Yes |
| Fixed mount | Yes |
| Cigarette lighter plug | Yes |
| Microphone support | Yes |
| Station support | Yes |
