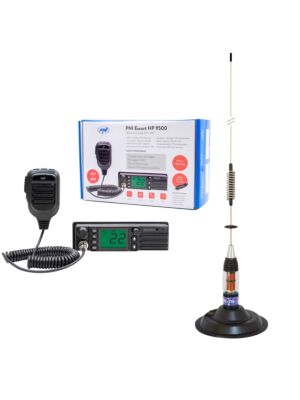

HP-9500

CB PNI Escort HP 9500 Radio Station Package, ASQ, 12-24V + CB PNI ML70 Antenna, 70 cm with 145 mm magnetic base included

HP-62

CB PNI Escort HP 62 radio station package, ASQ, RF Gain and CB PNI ML70 Antenna with 145 mm magnetic base included

CB PNI Escort HP 9700 USB Radio Station Package and CB PNI ML70 Antenna with 145 mm magnetic base included

CB PNI Escort HP 9700 USB Radio Station Package and CB PNI ML70 Antenna with 145 mm magnetic base included
€109.28
Availability: In stock
SKU
PNI-PACK97

PNI-HP9700USB - CB radio station PNI Escort HP 9700 USB, ANC, ASQ, 12V / 24V power supply, cigarette lighter plug included



CB PNI Escort HP 9700 USB ANC ASQ radio station

Multi-norm CB radio station

By changing the norm, the procedure is easy to perform with a simple key combination, and by changing the modulation (AM / FM) depending on the norm, the CB PNI Escort HP 9700 radio station can be used in several European countries, such as Romania, Italy, Spain, UK, Germany, Poland etc. Consult the legislation of each country regarding the use of the CB band, the maximum allowed emission power and the need to hold or not a license before using the PNI station.

Noise control functions: SQ, ASQ, RF Gain and ANC

The CB PNI Escort HP 9700 radio station allows the most accurate control over the background noise specific to the CB band. The 28-level adjustable SQ function and 5-level ASQ allow the user to filter and eliminate noise making communication clearer. The 9-level RF Gain function allows control over the reception frequency, reducing distortion. The ANC (Automatic Noise Canceling) function automatically extracts and cancels the noise level on the reception.

CB PNI Escort HP 9700 USB ANC ASQ radio station

CB PNI Escort HP 9700 USB ANC ASQ radio station

Scan, Lock, EMG and USB port

PNI Escort HP 9700 is a station that easily meets the basic needs of any CB band user. The channel scan function, key lock and immediate access to emergency channels (9/19) via the dedicated button make the HP 9700 an accessible, intuitive and easy to set up station. The 5V 1.7A USB connector on the front panel offers the possibility to charge mobile devices.

Settings menu

The RFG / MENU key on the front panel allows direct access to the menu of additional settings: RF Gain level setting, ANC function activation / deactivation, brightness level setting and screen contrast.

CB PNI Escort HP 9700 USB ANC ASQ radio station

PNI-ML70 - CB antenna PNI ML70, length 70cm, 26-30MHz, 200W, magnet 145 mm included



CB PNI ML70 antenna length 70cm and magnet

High performance CB PNI ML70 antenna

The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.2, maximum applied power 200 W, impedance 50 Ohms, stainless steel, etc.

Communication distance

Communication distance is another decisive factor in the acquisition and use of a CB antenna. Thus, the communication distance of maximum 9 km is reached in ideal working conditions: calibrated antenna, open field without obstacles, the station with maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance.

range CB CBI ML70 antenna length 70cm and magnet

CB PNI ML70 antenna length 70cm and magnet

Antenna length

Antenna length is a very important factor that can influence the communication distance. Thus, the longer the antenna, the longer the range. The PNI ML70 antenna has a length of 70 cm (magnetic base included).

Magnetic base

The magnetic base PNI 145 / PL in the package is provided with a 4 m cable, enough to place the antenna on the dome, has a diameter of 145 mm and a strong magnet that gives the antenna stability even at high speeds.

magnetic base DV Antenna CB PNI ML70 length 70cm and magnet

CB Antenna kit PNI ML70 length 70cm and magnet

Full package

This kit is ready for assembly with the package: antenna, magnetic base with cable and PL259 plug, enclosure for calibration. All you have to do is mount the antenna on a magnetic base, connect it to a CB radio station and calibrate it to use it at maximum performance.

Video presentation

CB PNI antenna ML70, length 70cm, 26 30MHz, 200W, magnet 145 mm included EN

CB PNI Escort HP 9700 USB, ANC, ASQ radio station, 12V 24V power supply UK

Write Your Own Review
You're reviewing:CB PNI Escort HP 9700 USB Radio Station Package and CB PNI ML70 Antenna with 145 mm magnetic base included
Your Rating
Product identification
Product code PNI-PACK97
General characteristics of the radio station
Model Portable
Emission band type AM-FM
Frequency 26.965-27.405 MHz
channels 40
Microphone type 6 pins
Sensitivity (20dB SINAD) greater than 1 µV (AM/FM)
Mounting 1 DIN Yes
feeding 12 -24 V
Dimensions / Weight 115 x 150 x 38 mm / 0.8 kg
Special radio station features
ASQ (automatic squelch) Yes
Channel scan Yes
RF Gain Yes, 9 levels
Lock the keyboard Yes
USB port Yes
Characteristics of the radio antenna
Working frequency 26 - 28 Mhz
Maximum power applied 200 W
Minimum SWR in the center of the band less than 1.2
Antenna length 70 cm (magnetic base included)
Working distance 8 km
Impedance 50 Ohms
Material Stainless steel
Connector type PL259
Hole diameter 16 mm
Magnetic base included Yes
Magnetic base diameter 100 x 18 x 5 cm
Cable length 4 m
I earn 4 dB
Polarization vertically
The package contains
CB radio station Yes
CB radio antenna Yes
Magnetic base Yes
Plug PL259 Yes
RG58 cable Yes, 4 m
Station power cable Yes
Cigarette lighter plug Yes
Microphone support Yes
Station support Yes
Microphone Yes
Support and screws for holding the radio station Yes
Microphone support and screws Yes
User manual Yes



PNI-ML70
Lang Type Name Link
EU10 Declaration of Conformity Declaration of conformity EU10 Link
EU10 User manual Datasheet EU10 Link
