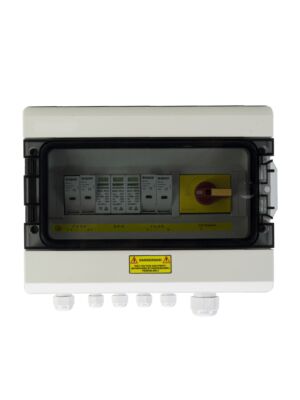

PNI CBT-3 switchboard for protection and interruption of three-phase solar system AC DC input 4 strings, output 1 string
Three-phase solar system protection and controlIn order to reduce the cable connections between the PV components and the inverter, to improve reliability and to be easier to maintain, the combination box is generally required for large-scale three-phase grid-connected PV systems. The PNI CBT-3 is specifically designed to meet this requirement. The combination box creates a complete solution for a photovoltaic power generation system with inverter. By using a combination box, the user can combine a certain number of PV components with the same specifications into a single component group depending on the DC input voltage range of the inverter. | |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
Technical specificationsPNI CBT-3 can be installed outdoors thanks to the IP65 degree of protection. The metal case prevents damage to the components from UV rays, acids, moisture, mold or rodents. In case of interventions on the installation, PNI CBT-3 facilitates the interruption of the system and simplifies the connection of the wires.
| |||||||||||||||||||||||||||||||||||||||||||||
| Identification | |
| Product code | PNI-CBT-3 |
| General characteristics | |
| Technical parameters | - Solar input (+, -): 4 strings - Current string input (A): 15 A - Solar input wire section: 4 mm - DC output (solar) to inverter: 1 output - DC output Current (A) : 60 A - Maximum solar input voltage (V): 1000 - DC Surge protector: Yes 1 piece - AC input: three-phase 3 wires 380-440V - Maximum AC input current: 63A - AC input section (mm2): 10 - AC Surge protector: Yes 1 piece - Working temperature: -20°C ~ 50°C - Cooling: natural / passive through the metal case |
| Description | PNI panel for protection and interruption of DC and AC photovoltaic solar system with three-phase output |
| Weight | 10,812 Kg |
| size | 440 X 175 X 335 mm |
| The package contains | |
| Content | Protection board |
