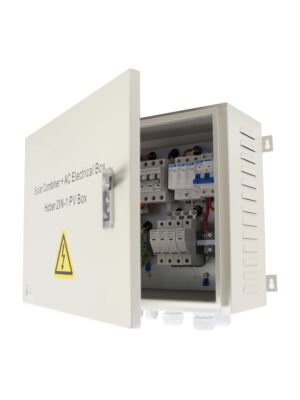

PNI CBM-2 single-phase solar system protection and interruption panel
Single-phase solar system protection and controlTo reduce the cable connections between the PV components and the inverter, to improve reliability and to be easier to maintain, the combination box is generally required for large-scale grid-connected PV systems. The PNI CBM-2 is specifically designed to meet this requirement. The combination box creates a complete solution for a photovoltaic power generation system with inverter. By using a combination box, the user can combine a certain number of PV components with the same specifications into a single component group depending on the DC input voltage range of the inverter. | |||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||
Technical specificationsPNI CBM-2 can be installed outdoors thanks to the IP65 degree of protection. The box prevents damage to the components from UV rays, acids, moisture, mold or rodents. In the case of interventions on the installation, the PNI CBM-2 facilitates the interruption of the system and simplifies the connection of the wires.
| |||||||||||||||||||||||||||||
| Identification | |
| Product code | PNI-TPIM1-S |
| Producer | PNI |
| General characteristics | |
| Technical parameters | - Solar input (+, -): 2 strings - Current string input (A): 15 A - Solar input wire section: 4 mm - DC output (solar) to inverter: 1 output - DC Current output (A) : 32 A maximum - Maximum solar input voltage (V): 1000 - DC Surge protector: Yes, 1 piece - Working temperature: -20°C ~ 50°C - Protection class: IP65 - Working temperature: -20° C ~ 60°C |
| Description | PNI switchboard for protection and interruption of DC and AC solar photovoltaic system with single-phase output |
| Weight | 2,544 kg |
| size | 290 X 210 X 125 mm |
| The package contains | |
| Content | Protection board |
