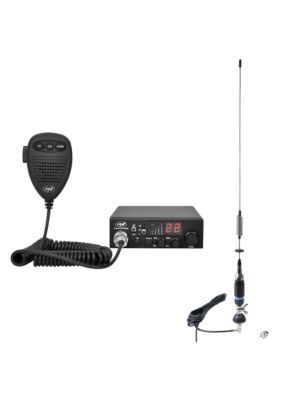

Packet CB PNI Escort HP 6500 ASQ Escort + CB PNI ML145 Magnet Antenna

Packet CB PNI Escort HP 6500 ASQ Escort + CB PNI ML145 Magnet Antenna

Packet CB PNI Escort CB 6500 ASQ + CB PNI s9

Wireless CB PNI Escort package HP 6500 ASQ + CB PNI S9 antenna with magnet

Packet CB PNI Escort HP 6500 ASQ Escort + CB PNI ML160 Antenna with Magnet

Packet CB PNI Escort HP 6500 ASQ Escort + CB PNI ML160 Antenna with Magnet
€81.18
Availability: In stock
SKU
PNI-PACK67

Reduced dimensions

Its reduced dimensions (only 110x120x25mm) allow the station to be placed even in very narrow spaces, without having to resort to a real installation, as in the case of a classic CB.

cb mini up to 6500

PNI Escort HP 6500

Emission power 4W

The station complies with the legislation in force in Romania harmonized with European standards, having the maximum legal power allowed of 4 W.

FM/AM

The PNI Escort HP 6500 CB station allows communication in the FM band, used in Romania, but also in the AM band, when traveling abroad. In addition to the band type, the station also allows the selection of the frequency band, a setting necessary for using the station in other European countries.

PNI Escort HP 6500

Radio station PNI Escort HP 6500

Double squelch, adjustable and automatic digital

PNI Escort HP 6500 is improved with a digital automatic system for reducing noise and interference (Digital Automatic Squelch). The dual manual and automatic squelch mode offers 28 and 9 level settings along with the RF Gain function for a finer reception adjustment.

Performance CB antenna PNI ML160

The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <1.1, maximum applied power 600 W, impedance 50 Ohms, stainless steel, etc.

cb mini up to 6500

PNI Escort HP 6500

Communication distance

The communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the maximum communication distance of 15 km or even more is achieved under ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance.

Antenna length

The length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the communication distance / range. In this case 145 cm.

PNI Escort HP 6500

Radio station PNI Escort HP 6500

Magnetic base

The magnetic base PNI 145/PL has a diameter of 145 mm, a size that gives the antenna stability even at high speeds, having a pleasant design.

Write Your Own Review
You're reviewing:Packet CB PNI Escort HP 6500 ASQ Escort + CB PNI ML160 Antenna with Magnet
Your Rating
Product identification
Product code PNI-PACK67
General characteristics of the radio station
Model Portable
Emission band type AM-FM
Frequency 26.965-27.405 MHz
channels 40 AM/FM
Speaker audio power 1W
Sensitivity (20dB SINAD) greater than 1 µV (AM/FM)
Modulation 80 - 90%
feeding 12 V
Consumption 2A maximum
Dimensions / Weight 110 X 120 X 28 / 385 g
Special radio station features
Channel scan Yes
RF Gain Yes, 9 levels
Lock the keyboard Yes
Emergency channel button 9/19 Yes
ASQ adjustable Yes, 28 levels
SQ - Squelch Yes
Characteristics of the radio antenna
Working frequency 26 - 28 Mhz
Number of channels 90
Maximum power applied 600 W
Minimum SWR in the center of the band 1.0
Antenna length 155 cm (including base)
Working distance 15 km
Impedance 50 Ohms
Material Stainless steel
Connector type PL259
Hole diameter 16 mm
Magnetic base included Yes
Magnetic base diameter 145 mm
Cable length 4 m
The package contains
CB radio station Yes
CB radio antenna Yes
Magnetic base Yes
Plug PL259 Yes
RG58 cable Yes, 4 m



PNI-ML160FC
Lang Type Name Link
EU10 Declaration of Conformity Declaration of conformity EU10 Link

PNI-145-PL
Lang Type Name Link
EU10 User manual User manual EU10 Link
