Video surveillance kit PNI House WiFi550 NVR 8 Channel 1080P and 4 Wireless Wireless Outside 720P, P2P, IP66
Access and control methods
The PNI House WiFi550 video surveillance kit can be controlled from mobile devices through the Danale application compatible with Android and iOS, and from PC through the Dana CMS software. You can find the CMS installation file on the CD included in the package or you can download it from our website, from the product page, Download section.
You can connect the camera to the Internet through a wireless network. Also, connect the camera to the NVR also via a wireless connection. The maximum WiFi transmission distance is 100 m (in open field).
4 exterior rooms
The PNI House WiFi550 kit contains a recording unit (NVR) and 4 cameras, which can be used both indoors and outdoors, allowing surveillance of your home or business from anywhere you have an Internet connection.
8 channel NVR

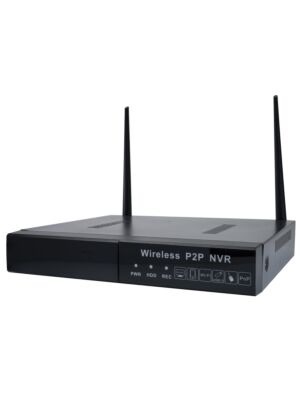

With the NVR in the package, you can record and play back images from 8 full HD video surveillance cameras. To record images, you can mount an internal HDD with a capacity of up to 4TB inside the NVR.
Recording at night
The 4 cameras are equipped with 30 IR LEDs each, equipment that offers you a quality video at night, up to 30 m.
Now you can follow the images taken by PNI House WiFi550 in real time. We also add full access to the system that allows you: settings, view recordings, download recordings, etc. Also, for a simpler configuration, the NVR in the kit can be accessed from the Internet without the need for special configurations in your router, through a P2P connection.
For Android and iOS we recommend the Danale application.
View in real time
The images are recorded in real time and can be viewed through a monitor connected to the NVR through the VGA or HDMI interface.
Along with the evolution of surveillance systems, HDD manufacturers have created dedicated solutions for them. Thus, for maximum performance of surveillance systems, we recommend using only hard disks dedicated to surveillance systems.
PNI House WiFi550 Video Surveillance Kit
|Video inputs||8 entries|
|Video outputs||1 x VGA, 1 x HDMI|
|Playback resolution||4 x 960P|
|Data storage||maximum 2 x 4 TB HDD (not included) dedicated to video surveillance|
|Network interface||RJ45 10/100 Mbps|
|Firmware update||Yes, via USB|
|Operating temperature||-26°C ~ +80°C|
|size||260 x 220 x 40 mm|
|Number of channels||8 channels 1080P|
|Video output resolution||1080P, 960P, 720P, 960H, D1, 360P, VGA|
|Wifi||Yes, only for connecting cameras|
|USB ports||2 x USB2.0|
|Image sensor||1/4" CMOS|
|PIXEL||1280 x 720 (HD)|
|Video output||Digital, via RJ45|
|Minimal lighting||0.01 LUX @ F1.2|
|Degree of protection||IP66, metal housing|
|IR illumination distance||Up to 30 m|
|size||60 x 183 x 60 mm (stand included)|
|Weight (without accessories)||400 g|
|Number of IR LEDs||30|
|feeding||12V / 1A|
|Network interface||RJ45 10/100Mps|
|Operating temperature||-25 ~ +50°C|
|The package contains|
|DVR / NVR||Yes|
|Surveillance cameras||4 indoor/outdoor rooms|
|NVR / DVR power supply||Yes|
|Camera power supply||Yes|
