TTi TCB-H100 portable CB radio station, 12V / 24V power supply, Roger Beep, Squelch

TTi TCB-H100 portable CB radio station
€104.08
Availability: In stock
SKU
PNI-TCB-H100

Portable CB radio station TTi TCB-H100

Portable CB radio station

Similar to a walkie-talkie in its size and portable design, the TTi TCB-H100 CB radio station keeps all the characteristics of a CB radio station: frequency range 26-28MHz, emission power 4W, AM/FM modulation, 12V or 24V power supply .

Dual power supply

The CB TTi TCB-H100 radio station can be powered both at 12V or 24V via the car adapter included in the package, and at 7.4V via the Li-Ion battery available in the TTi H100 accessories package that can be purchased separately.

Portable CB radio station TTi TCB-H100

Portable CB radio station TTi TCB-H100

Functions

The TTi TCB-H100 CB radio station was created taking into account the basic needs of a CB band user: DSS (Dynamic Squelch Tuning System) - the station's squelch is dynamically adjusted to an optimal level to obtain the best reception; Adjustable squelch - which reduces the background noise to a minimum level; Channel scanning ; Key lock ; Sound keys ; Echo function on emission; Roger beep (an acoustic signal at the end of the broadcast); Vox (broadcast without pressing the PTT button); transmission signal strength display (S-RF).

Multi norm CB radio station

By pressing the MENU button (P1) on the station, you can access the settings menu that allows activating and deactivating the station's functions, as well as selecting the norm. By selecting one of the 10 available standards (EC, EU, d, I1, I, EU, UK, PL, F and E) you can use the TTi TCB-H100 station anywhere in Europe.

Portable CB radio station TTi TCB-H100

Portable CB radio station TTi TCB-H100

Optional accessories package

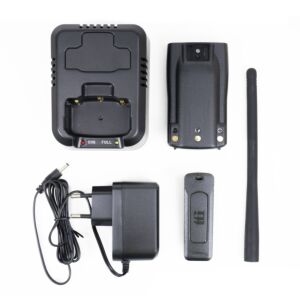

The optional TTi H100 accessory package ( product code PNI-AK-H100 ) includes a 2600mAh Li-Ion battery, a desk charger, BNC antenna and belt clip. The TTi TCB-H100 station thus becomes portable, being able to use it outside the vehicle as well.

Video presentation

Portable CB radio TTi TCB H100, 12V 24V power supply, Roger Beep, Squelch

Write Your Own Review
You're reviewing:TTi TCB-H100 portable CB radio station, 12V / 24V power supply, Roger Beep, Squelch
Your Rating
Product identification
Producer TT
Product code PNI-TCB-H100
General characteristics
Model Portable
Emission band type AM/FM
channels 40
Frequency 26.56 - 28.00 MHz
Speaker audio power 1W
Sensitivity (20dB SINAD) 1.4㎶ for 10dB(S+N)/N in AM; 0.8㎶ for 20dB SINAD in FM
Audio signal distortion less than 8% @ 1KHz
Emission power 4 W
Hi/Low power selection Yes
Modulation FM: 1.8KHz ± 0.2KHz, AM: 85-95%
feeding 12V/24V (via adapter) or 7.4V (via Li-Ion battery)
Absorbed current max. 1.6A
Dimensions (W x H x D / Weight) 57 X 35 X 120 mm / 224 g
Special features
Channel scan Yes
Lock the keyboard Yes
Emergency channels Yes
Roger Beep Yes
Echo function Yes
SWR meter
VOX Yes
Manual squelch Yes
and meter Yes
Accessory connection 2-pin PNI-M plug
Low battery indicator Yes
Operating temperature -26°C ~ +80°C
Key sound Yes
Front panel connections
2 pin jack Yes
The package contains
Radio station Yes
User manual Yes
Antenna adapter and 12 V power supply Yes
Battery
Battery charging support



PNI-TCB-H100
Lang Type Name Link
EU Declaration of Conformity Declaration of conformity EN, RO Link
EU User manual User manual EN, DE, ES, FR, HU, IT, RO Link
