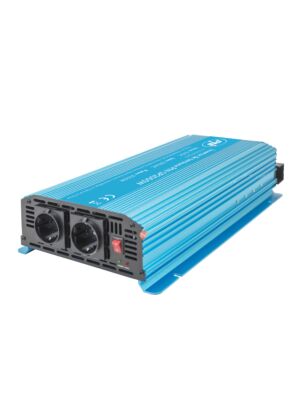

PNI SP1000W voltage inverter with pure sine wave, 12V pure sine power supply
| Pure sine wave inverterThe PNI SP1000W inverter with a continuous power of 1000W, transforms the input voltage 12V DC into 230V AC 50Hz. Since inverters need a strong current when they work, the capacity and maximum current of the battery are some factors that determine the efficiency at which the inverter works (50% - 100%). Therefore, for this model we recommend using a 12V battery with a capacity of at least 150Ah. |
ApplicationsThrough the two 230V outputs, the inverter can supply consumers with resistive loads such as televisions, audio systems, microwave ovens, fans, laptops, etc. For inductive loads, choose an inverter with a maximum power 2-3 times higher than the maximum power of the consumer. Connect the consumers in turn and do not exceed the declared maximum power of the inverter. |
|
| Incompatible with solar panelsCar inverters cannot be used with solar panels. There are special inverters for solar systems. |
Video presentation |
|
Voltage inverter PNI SP1000W with pure sinusoid, 12V power supply UK |
| Product Identification | |
| Pattern | For inductive/resistive loads |
| Product code | NIP-SP1000W |
| General characteristics | |
| Power output | 1000 W continuous |
| Peak Output Power | 2000W for 0.5S |
| Input voltage | 12V DC |
| Output voltage | 230V AC |
| Amperage on 230V output | 0-4.3 A |
| Working frequency | 50 Hz |
| Active cooling | With fan |
| Maximum power output | 2000W (for short) |
| Stand-by power consumption | 10-15 W |
| Efficiency | >88% |
| Overload capacity | > 120% |
| Cable length | 44 cm |
| Output waveform | Pure Sinusoidal |
| Operating temperature | -10°C ~ +40°C |
| Storage temperature | -20°C ~ +55°C |
| Dimensions | 310 X 226 X 90 mm |
| Weight | 2,789 g |
| Humidity | ≤ 90% |
| Alarms and protections | |
| Overload Warning | Yes |
| Surge warning | |
| Thermal protection | Yes |
| Short circuit protection | Yes |
| Automatic undervoltage shutdown | |
| Connections | |
| 230 V socket | 2 sockets |
| The package contains | |
| Inverter | Yes |
| Power Cord | Yes |
| Key | Yes |
| User Manual | Yes |
