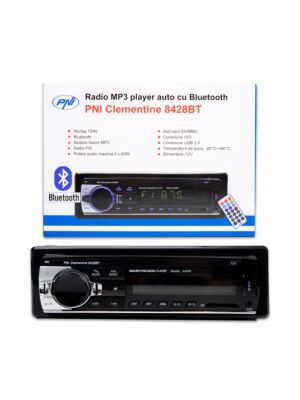

Clementine 8428BT

Radio MP3 player Clementine 8428BT 4x45w 1 DIN with SD, USB, AUX, RCA and Bluetooth

PNI Clementine 9440 AA

Car DVD Radio Clementine 9440 1 DIN FM radio, SD, USB, video output and Bluetooth

MP5 player Clementine 9545 1DIN display 4 inch, 50Wx4, Bluetooth, FM radio, SD and USB, 2 RCA video IN / OUT

MP5 4-inch auto display player, Bluetooth, FM radio, SD and USB, video input
Availability: In stock


The PNI Clementine 9545 MP5 player is equipped with the Bluetooth function that will allow you to make / receive phone calls or play audio files through the vehicle's audio system.

PNI Clementine 9545 car MP5 player with bluetooth


Playback of multimedia files from external storage media

You have multiple possibilities to play your favorite video, audio or photo files, from any of the 3 input sources: USB, micro SD card or Aux In.

Video in / out

The PNI Clementine 9545 MP5 player has two RCA plugs: one AV-in or out and one AV-in for the reversing camera.

PNI Clementine 9545 car MP5 player

PNI Clementine 9545

External monitor connection

The upper RCA jack on the rear panel can be video input or video output. The PNI Clementine 9545 MP5 player allows the transmission of the video image to an external monitor (headrest, car ceiling light). The image does not appear simultaneously on the player screen and on the external monitor. As long as the AV-out function is active, the monitor screen remains black.
The lower RCA socket allows the connection of a reversing camera.

4 inch screen

PNI Clementine 9545 has a 4-inch color LCD screen (800X480px) that gives you information about the different modes in which it can operate: FM radio mode, Media mode (USB or SD), AUX mode, Bluetooth mode.

PNI Clementine 9545 car MP5 player

ISO plug

Universal ISO sockets

PNI Clementine 9545 comes equipped with international standard ISO coupling plugs, which can be found on most cars equipped with factory radio function.

Video presentation

The MP5 PNI Clementine 9545

Write Your Own Review
You're reviewing:MP5 player Clementine 9545 1DIN display 4 inch, 50Wx4, Bluetooth, FM radio, SD and USB, 2 RCA video IN / OUT
Your Rating
Product identification
Producer PNI
Product code PNI-MP5-9545
Supply voltage 12V DC
Impedance 4 ohms
Maximum audio power (W) 4x50
Radio AM/FM
FM radio 87.5 – 108.0 MHz
AM radio 522kHz - 1620kHz
USB Yes, 2.0
Slot card Yes, SD
Signal to noise ratio greater than 40dB
Dimensions (W x H x D / Weight) 178 x 50 x 110 mm / 0.627 kg
Current consumption (max) 10
Audio input AUX In (3.5mm mini jack)
fitting 1 DIN
Screen lighting, buttons Red
Other connections 1 x RCA Video Input / Output 1 x RCA Video Input for the reverse camera
Special functions Full HD 1920 x 1080px video playback
Preset radio memories FM - 18 stations
Radio search mode Automatic, manual
Screen LCD, 4 inches
Play files MP5, MP3, MP4, WMA, WAV etc.
Operating temperature -26°C ~ +80°C
Bluetooth Yes
The package contains:
Radio MP3 player Yes
Mounting rail Yes
Remote Yes
Connection cables Yes
User manual Yes
