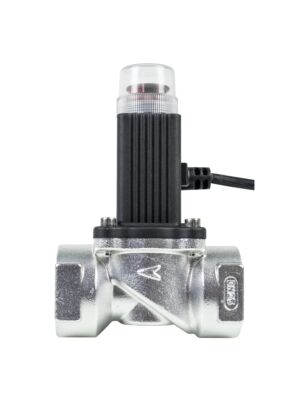

Gas solenoid valve PNI V-02, 3/4 ''

Be the first to review this product

The PNI-V-02 model is a gas solenoid valve, which offers a safety solution for stopping gas in an emergency by closing the valve. It can be connected to a gas sensor for gas leak detection, a fire alarm circuit or other types of constructive variants of gas sensors (such as wireless ones) to stop the gas supply (manually or automatically), in emergency case. The solenoid valve has an automatic closing system, when input voltages of 9-12 V. are detected. After closing, its opening is done manually by vertically lifting the red button upwards. This function will ensure safety when there is a defect in the gas installation.

€13.48

Availability: Out of stock

SKU

ACT-V02

Details

3/4" gas valve connection
The PNI V-02 solenoid valve can be used as an output switch for the gas sensor. When the gas leaks in the monitored room reach the alarm point, the gas sensor will sound and the valve will cut off the gas supply.
Dimensions
	The PNI V-02 gas solenoid valve is small in size and easy to handle. The device should be mounted on the gas valve in accessible and ventilated places.
High strength, sensitivity and performance
The PNI V-02 solenoid valve has good moisture resistance and high performance. The aluminum alloy body as well as the moisture sealing materials (NBR rubber) ensure the strength and durability of the solenoid valve.
Manual reset
	After fixing the fault that caused the solenoid valve to be activated, it can be manually reset by lifting the red button after removing the protective cover.

Video presentation
Gas valve PNI V 02 34 for gas detector UK

Reviews

Technical specifications

Product identification
Producer	NIP
Product code	ACT-V02
General features
Size	3/4'
Sensitivity	high
Valve closing time	less than or equal to 1sec
Time allowed for continuation	less than or equal to 30sec
Explosive level	Exm II T6
Maximum operating pressure	20 kPa - 100 kPa
Power impulse when actuating	DC 9~12V
Operating temperature	-10 to +50 degrees C
The package contains:
solenoid	Yes
