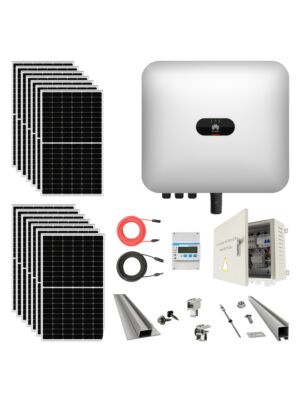

Complete single-phase 6kW prosumator kit with 16 370W panels, accessories and mounting included + Smart meter and wifi dongle
The kit includes: Huawei SUN2000-6KTL-L1 Single Phase Grid Inverter; 16 370W PNI panels; Smart Meter Huawei DTSU666-H 250A, Smart Dongle; AC / DC separation panel, mounting accessories and mounting included.
€7,493.87
Availability:
In stock
SKU
PNI-KPFM-6KW
Write Your Own Review
| Solar panel features | |
| Panel type | monocrystalline |
| Maximum power at STC (Pmp) | 370 W |
| Cell efficiency | 20.3% |
| Maximum voltage (Vmp) | 34.4 V |
| Maximum current (Imp) | 10.76 A |
| Open circuit voltage (Voc) | 41.3 V |
| Short circuit current (Isc) | 11.26 A ±3% |
| Maximum system voltage | 1500V DC |
| Fuse (Maximum) | 20 A |
| Dimensions/Weight | 1755 x 1038 x 35 mm / 19.5 kg |
| Solar cells | 120 (Monocrystalline) |
| Material | Monocrystalline silicon / Anodized aluminum |
| Effective guarantee | 10 years 91% Power output, 25 years 80% power output |
| Resistance to external factors | IP67 |
| Connection cable | Yes, 2x 0.4 m, MC4 connector |
| Inverter features | |
| Solar inverter type | On Grid |
| Continuous power | 6000 W |
| Output voltage waveform | Pure sinusoid |
| Battery supply voltage | 350 ~ 450 Vdc (dedicated batteries) |
| RMS output voltage | 220 Vac / 230 Vac / 240 Vac |
| Output signal frequency | 50Hz / 60Hz |
| Maximum solar charging current | 12.5 A ( per MPPT ) |
| Solar DC voltage | 90V – 560V |
| Maximum solar power | 9000 Wp |
| MOUNTING | On the wall |
| Dimensions/Weight | 365mm * 365mm * 156mm / 12 Kg |
| Integrated inverter type | High frequency |
| Solar charger type | MPPT (Maximum Power Point Tracking) |
| Equipment included | |
| Solar panel | 16 pcs |
| inverters | 1 b.c |
| Other | - 8 panel mounting kits on tin roof - Panel DC separation/protection panel - Smart Meter Huawei DDSU666-H - 50 m solar cable 6 mm Red + 50 m black solar cable - 3 sets of MC4 connectors |
