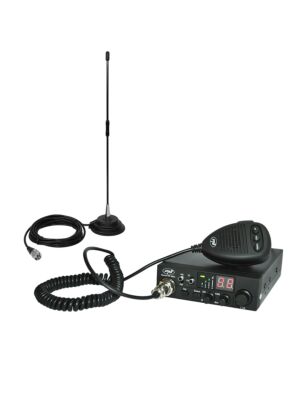

CB PNI ESCORT HP 8024 ASQ radio station pack, 12-24 V, 40 channels, 4W + CB PNI ML70 antenna with magnet

CB PNI ESCORT HP 8024 ASQ radio station pack, 12-24 V, 40 channels, 4W + CB PNI ML70 antenna with magnet

CB PNI ESCORT HP 8024 ASQ Radio Station Kit + CB PNI Extra 40 Antenna

CB PNI ESCORT HP 8024 ASQ Radio Station Pack, 4W, AM-FM, 12 / 24V + CB PNI Extra 40 Antenna with 5-7KM magnet

CB PNI ESCORT HP 8024 ASQ Radio Station Pack + CB PNI Extra 48 Antenna with magnet

CB PNI ESCORT HP 8024 ASQ Radio Station Kit + CB PNI Extra 48 Antenna with magnet
€83.26
Availability: In stock
SKU
PNI-PACK78

0001

Dual 12V / 24V power supply

The CB PNI Escort HP 8024 radio station can be mounted both on cars with 12V power supply and on trucks or TIRs with 24V power supply.

ASQ Adjustable

An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band.

0002

0003

ASQ button on microphone

For increased comfort behind the wheel, PNI has positioned the automatic squelch (ASQ) activation/deactivation button on the microphone. Besides this, we also find the up/down buttons for changing channels.

Key lock switch

The PNI Escort HP 8024 CB radio station has a switch on the front panel that allows the selection of the emergency channel (19), the normal operating mode (CH) and the activation of the key lock function (L), a useful function in situations where you want to avoid touching accidental pressing of the station keys.

0004

0005

Reduced dimensions

You can use the product in any car, because it is one of the smallest CB radio stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being uncomfortable or disturbing.

Discreet and efficient

The PNI Extra 48 antenna is among the smallest CB antennas (it has a height of only 45 cm) and can be mounted both on cars and on vans or minibuses. Its small dimensions make it almost imperceptible, easily confusing with the radio antenna. The average reception distance is 10 km.

0001

0002

Aerodynamic design

The PNI Extra 48 antenna has a special anti-noise design that allows the air to slide around the spike, eliminating the noise produced by the wind.

Write Your Own Review
You're reviewing:CB PNI ESCORT HP 8024 ASQ Radio Station Pack + CB PNI Extra 48 Antenna with magnet
Your Rating
Product identification
Product code PNI-PACK78
General characteristics of the radio station
Model Portable
Emission band type AM-FM
Frequency 26.965-27.405 MHz
channels 40 AM/FM
Microphone type 6 pins
Audio signal distortion less than 8% @ 1 KHz
Emission power 4W+
Modulation FM: 3KHz ± 0.2KHz, AM: 85-90%
Dimensions / Weight 115 x 36 x 152 mm / 0.8 kg
Special radio station features
ASQ (automatic squelch) Yes
Lock the keyboard Yes
Emergency channel button 9/19 Yes
Operating temperature -26 C - +60 C
Additional speaker connection Yes
Characteristics of the radio antenna
Working frequency 26 - 28 Mhz
Maximum power applied 150 W
Minimum SWR in the center of the band 1.0
Antenna length 45 cm (magnetic base included) Spike length: 44 cm
Working distance 10 km
Impedance 50 Ohms
Material Fiber glass
Connector type PL259
Magnetic base diameter 103 x 66 x 40 mm
Cable length 4 m
I earn >5 dBi
Polarization vertically
The package contains
CB radio station Yes
CB radio antenna Yes
Magnetic base Yes
Plug PL259 Yes
Cigarette lighter plug Yes
Microphone support Yes
Station support Yes
RG174 cable Yes, 4 m
Microphone Yes



PNI-HP8024
Lang Type Name Link
EU Declaration of Conformity Declaratie de conformitate EN, BG, DE, ES, FR, HU, IT, PL, RO Link
EU10 Declaration of Conformity Declaration of conformity EU9 Link
EU10 User manual User manual EU10 Link
RO Declaration of Conformity DC&CG Link
