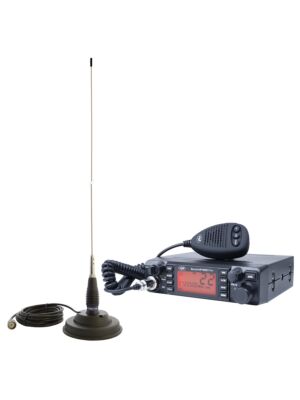

CB PNI ESCORT ESQORT HP 9001 PRO ASQ radio station kit adjustable, AM-FM, 12V, 4W + CB PNI ML70 antenna 26-30MHz, 200W, 70cm, magnet 145 mm included
PNI-HP9001P - CB radio station PNI Escort HP 9001 PRO ASQ adjustable, AM-FM, 12V/24V, 4W, Scan, Dual Watch, ANL, multicolored screen
| 12V / 24V power supplyThe evolution of the previous PNI Escort HP 9001, the new PRO version adds the possibility of 24V power supply. PNI Escort HP 9001 PRO accompanies car, truck or trailer drivers on the road. It is an excellent product, equipped with all the functions necessary for effective communication. It is an easy-to-use communication tool. |
Multi-standard CB radio stationWith 80 AM/FM channels, with a power that varies between 1W and 4W depending on the country, the HP 9001 PRO easily adapts to the standards required in different countries in Europe. With a simple combination of keys, you can change the specific operating norm in countries such as: Spain, Italy, France or Germany. |
|
| Adjustable ASQ, key lock functionWith compact dimensions, easy to install and equipped with essential functions (ASQ, Lock, Dual Watch, Scan, ANL, MEM) PNI Escort HP 9001 is enriched with several buttons, including the one dedicated to emergency channels 9/19 and the screen multifunctional backlit. |
Multicolor screenFor maximum visual compliance, the HP 9001 PRO adapts to your needs by providing 7 background colors for the screen, such as: red, green, purple, blue and yellow. |
|
PNI-ML70 - PNI ML70 CB antenna, length 70cm, 26-30MHz, 200W, magnet 145 mm included
| CB antenna performance PNI ML70The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.2, maximum applied power 200 W, impedance 50 Ohms, stainless steel, etc. |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the maximum communication distance of 9 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. |
|
| Antenna lengthThe length of the antenna is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range of action. The PNI ML70 antenna is 70 cm long (magnetic base included). |
Magnetic baseThe PNI 145/PL magnetic base in the package is provided with a 4 m cable, sufficient for placing the antenna on the dome, it has a diameter of 145 mm and a strong magnet that gives the antenna stability even at high speeds. |
|
| Full packageThis kit is ready for assembly with: antenna, magnetic base with cable and plug PL259, Allen key for calibration. All you have to do is mount the antenna on the magnetic base, connect it to a CB radio station and calibrate it to use it at maximum performance. |
PNI-HP9001P - CB radio station PNI Escort HP 9001 PRO ASQ adjustable, AM-FM, 12V/24V, 4W, Scan, Dual Watch, ANL, multicolored screen | |
|---|---|
| Product identification | |
| Producer | PNI |
| Product code | PNI-HP9001P |
| Product type | CB radio station |
| General characteristics | |
| Model | Portable |
| Emission band type | AM/FM |
| channels | 40 |
| Frequency | 26.965 - 27.405 MHz |
| Microphone type (pins) | 6 pins |
| Speaker audio power | 3 W |
| Sensitivity (20dB SINAD) | less than 0.5 µV AM/FM |
| Emission power | 4 W |
| Modulation | FM: 1.8KHz ± 0.2KHz, AM: 85-95% |
| feeding | 12 V / 24 V |
| Absorbed current | maximum 2200mA |
| Dimensions (W x H x D / Weight) | 160 X 170 X 45 mm / 500g |
| 1DIN assembly | Yes |
| Special features | |
| Dual Watch | Yes |
| Channel scan | Yes |
| ASQ | Yes |
| Lock the keyboard | Yes |
| LCR - the last selected channel | Yes |
| ASQ adjustable | Yes |
| Emergency channels | Yes |
| Noise filter | ANL (Automatic Noise Limiter) |
| Multicolor screen | Red, Green, Purple, Blue, Yellow |
| Memory channels | Yes |
| Operating temperature | -26°C ~ +80°C |
| Display type | LCD |
| Channel monitoring | Yes |
| Display | Yes |
| Use, destination | in the car, truck or at home. |
| Rear panel connections | |
| Additional speaker connection | Yes |
| Microphone connection | Yes |
| The package contains | |
| Radio station | Yes |
| Microphone | Yes |
| Support and screws for holding the radio station | Yes |
| Microphone support and screws | Yes |
| Power cord | Yes |
| Cigarette lighter plug | Yes |
| User manual | Yes |
PNI-ML70 - PNI ML70 CB antenna, length 70cm, 26-30MHz, 200W, magnet 145 mm included | |
|---|---|
| Product identification | |
| Product code | PNI-ML70 |
| Work tape | ? B |
| Product color (spike) | Black |
| General characteristics | |
| Working frequency | 26 - 28 Mhz |
| Number of channels | |
| Maximum power applied | 200W |
| Minimum SWR in the center of the band | less than 1.2 |
| Length | 70 cm (magnetic base included) |
| Impedance | 50 Ohms |
| Material | Stainless steel |
| Connector type | PL |
| Hole diameter | 16 mm |
| Cable length | 4 m |
| Weight | 800g |
| size | 100 x 18 x 5 cm |
| I earn | 4 dBi |
| Working distance | 8 km |
| Operating temperature | -26°C ~ +80°C |
| The package contains | |
| Radio station antenna | Yes |
| RG58 cable | 4 m |
| Plug PL259 | Yes |
| Magnetic base | 145 mm |
 PNI-HP9001P |
| ||||||||||||
 PNI-ML70 |
|
