PNI-HP9001-Extra45 has

CB PNI ESCORT HP 9001 PRO ASQ 12/24 Radio Station Kit + CB PNI Extra 45 Antenna with Magnet

PNI ESCORT HP 9001 PRO ASQ + PNI S75

CB PNI ESCORT HP 9001 PRO ASQ radio station package + CB PNI S75 antenna with magnet

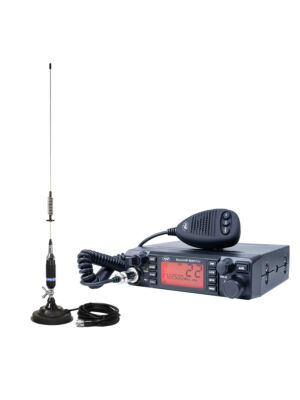

CB PNI ESCORT ESQORT HP 9001 PRO ASQ radio station kit adjustable, AM-FM, 12V, 4W + CB PNI ML100 antenna, 26-30MHz, 250W, 100cm, 125mm magnet included

CB PNI ESCORT ESQORT HP 9001 PRO ASQ radio station kit adjustable, AM-FM, 12V, 4W + CB PNI ML100 antenna, 26-30MHz, 250W, 100cm, 125mm magnet included
€98.87
Availability: In stock
SKU
PNI-PACK17PRO

PNI-HP9001P - CB radio station PNI Escort HP 9001 PRO ASQ adjustable, AM-FM, 12V/24V, 4W, Scan, Dual Watch, ANL, multicolored screen



pni escort hp 9001 pro

12V / 24V power supply

The evolution of the previous PNI Escort HP 9001, the new PRO version adds the possibility of 24V power supply. PNI Escort HP 9001 PRO accompanies car, truck or trailer drivers on the road. It is an excellent product, equipped with all the functions necessary for effective communication. It is an easy-to-use communication tool.

Multi-standard CB radio station

With 80 AM/FM channels, with a power that varies between 1W and 4W depending on the country, the HP 9001 PRO easily adapts to the standards required in different countries in Europe. With a simple combination of keys, you can change the specific operating norm in countries such as: Spain, Italy, France or Germany.

pni escort hp 9001 pro

pni escort hp 9001 pro

Adjustable ASQ, key lock function

With compact dimensions, easy to install and equipped with essential functions (ASQ, Lock, Dual Watch, Scan, ANL, MEM) PNI Escort HP 9001 is enriched with several buttons, including the one dedicated to emergency channels 9/19 and the screen backlit multifunctional.

Multicolor screen

For maximum visual compliance, the HP 9001 PRO adapts to your needs by providing 7 background colors for the screen, such as: red, green, purple, blue and yellow.

pni escort hp 9001 pro

PNI-ML100 - PNI ML100 CB antenna, length 100 cm, 26-30MHz, 250W, 125mm magnet included



performance CB antenna PNI ML100

CB antenna performance PNI ML100

The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.0, maximum power applied 250 W continuously, impedance 50 Ohms, stainless steel, etc.

Communication distance

The communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the maximum communication distance of 12 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance.

range of action CB PNI ML100 antenna

CB antenna PNI ML100 with length 100 cm

Antenna length

The length of the antenna is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range of action. The PNI ML100 antenna is 110 cm long (magnetic base included).

Magnetic base

The magnetic base 120/PL in the package is provided with a 4 m cable, enough to place the antenna on the dome, it has a diameter of 125 mm and a strong magnet that gives the antenna stability even at high speeds.

magnetic base DV CB antenna PNI ML100

CB Antenna kit PNI ML100

Full package

This kit is ready for assembly with: antenna, magnetic base with cable and plug PL259, Allen key for calibration. All you have to do is mount the antenna on the magnetic base, connect it to a CB radio station and calibrate it to use it at maximum performance.

Video presentation

CB PNI ML100 antenna EN

Write Your Own Review
You're reviewing:CB PNI ESCORT ESQORT HP 9001 PRO ASQ radio station kit adjustable, AM-FM, 12V, 4W + CB PNI ML100 antenna, 26-30MHz, 250W, 100cm, 125mm magnet included
Your Rating

PNI-HP9001P - CB radio station PNI Escort HP 9001 PRO ASQ adjustable, AM-FM, 12V/24V, 4W, Scan, Dual Watch, ANL, multicolored screen

Product identification
Producer PNI
Product code PNI-HP9001P
Product type CB radio station
General characteristics
Model Portable
Emission band type AM/FM
channels 40
Frequency 26.965 - 27.405 MHz
Microphone type (pins) 6 pins
Speaker audio power 3 W
Sensitivity (20dB SINAD) less than 0.5 µV AM/FM
Emission power 4 W
Modulation FM: 1.8KHz ± 0.2KHz, AM: 85-95%
feeding 12 V / 24 V
Absorbed current maximum 2200mA
Dimensions (W x H x D / Weight) 160 X 170 X 45 mm / 500g
1DIN assembly Yes
Special features
Dual Watch Yes
Channel scan Yes
ASQ Yes
Lock the keyboard Yes
LCR - the last selected channel Yes
ASQ adjustable Yes
Emergency channels Yes
Noise filter ANL (Automatic Noise Limiter)
Multicolor screen Red, Green, Purple, Blue, Yellow
Memory channels Yes
Operating temperature -26°C ~ +80°C
Display type LCD
Channel monitoring Yes
Display Yes
Use, destination in the car, truck or at home.
Rear panel connections
Additional speaker connection Yes
Microphone connection Yes
The package contains
Radio station Yes
Microphone Yes
Support and screws for holding the radio station Yes
Microphone support and screws Yes
Power cord Yes
Cigarette lighter plug Yes
User manual Yes


PNI-ML100 - PNI ML100 CB antenna, length 100 cm, 26-30MHz, 250W, 125mm magnet included

Product identification
Product code PNI-ML100
Work tape ? B
Product color (spike) Silver
General characteristics
Working frequency 26 - 28 Mhz
Number of channels 90
Maximum power applied 250W
Minimum SWR in the center of the band 1.0
Length 100 cm (110 cm with base included)
Impedance 50 Ohms
Material Stainless steel
Connector type PL
Hole diameter 16 mm
Cable length 4 m
Weight 1.2 Kg
size 1000 x 150 x 40 mm
I earn 4 dBi
Working distance 12 km
Operating temperature -26°C ~ +80°C
The package contains
Radio station antenna Yes
RG58 cable 4 m
Plug PL259 Yes
Magnetic base 125 mm
